Print Friendly Web Pages

Hi,

I am currently using ASP.NET MVC3 and wanted a way to style printing views of web pages, all I really needed was a way to remove:

  • Headers
  • Footers
  • Navigation

The trick is to use the @media declaration in CSS to specify the styling for media type printing. All we do is set the headers, footers and Nav items to display none.

Below is sample CSS that I used to complete this based on http://www.w3.org/TR/CSS2/media.html

@media print{
    header,
    footer,
    nav
    {
        display: none;
    }
}

@media screen{
    header,
    footer,
    nav,
    section {
        display: block;
    }
}

@media screen{
    header
    {
        display: block;
        width: 100%;
        height: 50px;
        line-height: 50px;
        vertical-align: middle;
        background: #ddd;
        position: relative;
        overflow: hidden;
    }
}

ASP.NET MVC Rendering Enum DropDownLists, Radio Buttons and ListBoxes

Hi Folks,

Sometimes you will want to display Enums for your lists. This can easily be done with some HTML extensions and then evaluating the member expression.

It is a two step process.

  1. Get the expression and and get the type
  2. If the Model has data, then compile the expression to get the value
  3. If the Model does not have data, then parse the expression and get the enum values via reflection

Here is some HTML Helper extensions that you can find useful. It also has support for place holders, where you can provide a hint or tip as the first element in the list for non HTML 5 support.

Remember this important rule.

  1. Your model for single select items from a DropDownList should NEVER be an IEnumerable, it should just be a string or int or enum etc, since it is only ONE value going in the form post.
  2. Use the ViewBag to store the entire list of items to CHOOSE from
  3. Use the model to STORE the single value item SELECTED
  4. For multiple selects, like ListBox, then you can have an IEnumerable in the model, since the user will select multiple values.

Allot of people get confused and assume that because they need a drop down list for a typed view, that it must be IEnumerable or IList or whatever sort of collection in the model, this is not true for single select items from lists.

By understanding the fundamentals of HTTP GET and HTTP POST, you will then realise that if only single item form a list needs to be selected that the form values is only going to be one item, and hence your model can represent how the HTTP FORM DATA coming over the wire looks like. Perhaps a blog post soon on HTML and MVC Model Bindings….

Note, that ordering of enum values is supported with Display attributes. Also, since you can have nullable enums, the EnumRadioButtonFor support none option, turn it off with explicit false.

@Html.EnumRadioButtonFor(m => m.Gender, false)
public enum Gender {
 [Display(Name="Male", Order=0)]
 Male,
 [Display(Name="Female", Order=1)]
 Female,
 [Display(Name="WhoTheHellKnows", Order=2)]
 Both
}

public class MyModel
{
 public string User {get; set;}
 public Gender Gender {get; set;}
 public IEnumerable {get; set;} //This is ok for multi select lists, like ListBox
}

Remember HTTP GET –>Controller–> ViewBag.Users(Populate from database in controller for non enums) –> @Html.DropDownListFor(m => m.User, ViewBag.Users)

For Enums
@Html.EnumDropDownListFor(m => m.Gender)

See above, the SINGULAR property in the model for m.User.

The ViewBag.Users has an IEnumerble of users.

Right, now here is your HTML extensions for ENUM lists

using System;
using System.Collections;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.Linq;
using System.Linq.Expressions;
using System.Reflection;
using System.Text;
using System.Web;
using System.Web.Mvc;
using System.Web.Mvc.Html;

namespace Web
{
    public static class HtmlHelperExtensions
    {
        public static MvcHtmlString EnumDropDownList<TEnumType>(this HtmlHelper htmlHelper, string name, TEnumType value)
        {
            var selectItems = GetSelectItemsForEnum(typeof(TEnumType), value);
            return htmlHelper.DropDownList(name, selectItems);
        }

        public static MvcHtmlString EnumDropDownListPlaceholder<TEnumType>(this HtmlHelper htmlHelper, string name, TEnumType value, string placeholderName = null)
        {
            var selectItems = GetSelectItemsForEnum(typeof(TEnumType), value);

            AddPlaceHolderToSelectItems(placeholderName, selectItems);
            return htmlHelper.DropDownList(name, selectItems, new { @class = "placeholder" });
        }

        public static MvcHtmlString GenerateHiddenFieldsForIncomingModel<TModel, TProperty>(
        this HtmlHelper<TModel> htmlHelper,
        Expression<Func<TModel, TProperty>> expression,
        object model)
        {
            var sb = new StringBuilder();

            foreach (PropertyInfo info in model.GetType().GetProperties())
            {
                if (info.CanRead)
                {
                    var o = info.GetValue(model, null);

                    if (o is DateTimeOffset || o is DateTime)
                        sb.Append("<input type='hidden' name='" + info.Name + "' value='" + string.Format("{0:dd MMM yyyy}", o) + "'/>");
                    else if (!(o is IList))
                        sb.Append("<input type='hidden' name='" + info.Name + "' value='" + o + "'/>");
                }
            }
            return MvcHtmlString.Create(sb.ToString());
        }

        public static MvcHtmlString EnumRadioButtonFor<TModel, TProperty>(
        this HtmlHelper<TModel> htmlHelper,
        Expression<Func<TModel, TProperty>> expression,
        bool includeNoneOption = true,
        bool isDisabled = false,
        string cssClass = null
    ) where TModel : class
        {
            var memberExpression = expression.Body as MemberExpression;
            if (memberExpression == null)
                throw new InvalidOperationException("Expression must be a member expression");

            var name = ExpressionHelper.GetExpressionText(expression);
            var fullName = htmlHelper.ViewContext.ViewData.TemplateInfo.GetFullHtmlFieldName(name);
            ModelState currentValueInModelState;
            var couldGetValueFromModelState = htmlHelper.ViewData.ModelState.TryGetValue(fullName, out currentValueInModelState);
            object selectedValue = null;
            if (!couldGetValueFromModelState && htmlHelper.ViewData.Model != null)
            {
                selectedValue = expression.Compile()(htmlHelper.ViewData.Model);
            }

            var enumNames = GetSelectItemsForEnum(typeof(TProperty), selectedValue).Where(n => !string.IsNullOrEmpty(n.Value)).ToList();

            if (includeNoneOption)
            {
                if(!enumNames.Any(e => e.ToLowerInvariant() == "none"))
                    enumNames.Add("None");
            }

            var metaData = ModelMetadata.FromLambdaExpression(expression, htmlHelper.ViewData);
            var sb = new StringBuilder();
            sb.AppendFormat(
                "<ul class=\"radio-button-list{0}\">",
                string.IsNullOrEmpty(cssClass) ? string.Empty : " " + cssClass);
            foreach (var enumName in enumNames)
            {
                var id = string.Format(
                    "{0}_{1}_{2}",
                    htmlHelper.ViewData.TemplateInfo.HtmlFieldPrefix,
                    metaData.PropertyName,
                    enumName.Value
                    );

                if (id.StartsWith("-"))
                    id = id.Remove(0, 1);

                var value = enumName;
                if (includeNoneOption && enumName == "None")
                    value = string.Empty;

                sb.AppendFormat(
                    "<li>{2} <label for=\"{0}\">{1}</label></li>",
                    id,
                    HttpUtility.HtmlEncode(enumName),
                    isDisabled
                        ? htmlHelper.RadioButtonFor(expression, value, new {id, disabled = "disabled"}).ToHtmlString()
                        : htmlHelper.RadioButtonFor(expression, value, new {id}).ToHtmlString()
                    );
            }
            sb.Append("</ul>");
            return MvcHtmlString.Create(sb.ToString());
        }

        public static MvcHtmlString GuidanceNoteFor<TModel, TProperty>(
        this HtmlHelper<TModel> htmlHelper,
        Expression<Func<TModel, TProperty>> expression,
        string guidanceText)
        {
            var memberExpression = expression.Body as MemberExpression;
            if (memberExpression == null)
                throw new InvalidOperationException("Expression must be a member expression");

            //var metaData = ModelMetadata.FromLambdaExpression(expression, htmlHelper.ViewData);
            var sb = new StringBuilder();
            var name = ExpressionHelper.GetExpressionText(expression);
            var outterType = expression.Parameters[0].Type;
            var attributes = outterType.GetProperty(name).GetCustomAttributesData();
            var displayText = "";

            foreach(var attr in attributes)
            {
                if (attr.NamedArguments != null)
                foreach (var namedArg in attr.NamedArguments.Where(namedArg => namedArg.MemberInfo.Name == "Name"))
                {
                    displayText = (string)namedArg.TypedValue.Value;
                }
            }

            if (String.IsNullOrEmpty(guidanceText))
                guidanceText = displayText;

            sb.Append("<div class=\"guidance-img\"></div>");
            sb.Append("<div class=\"guidance-box\">");
            sb.Append("    <table class=\"infobox\" width=\"250\" cellspacing=\"0\" cellpadding=\"0\">");
            sb.Append("    <tbody>");
            sb.Append("        <tr>");
            sb.Append("            <td class=\"left\" width=\"14\" rowspan=\"3\">");
            sb.Append("                <div></div>");
            sb.Append("            </td>");
            sb.Append("            <td class=\"top\" colspan=\"2\"><div></div>");
            sb.Append("            </td>");
            sb.Append("        </tr>");
            sb.Append("        <tr>");
            sb.Append("            <td class=\"info\" width=\"356\">");
            sb.Append("                <a href=\"javascript: void(0);\">close<div></div></a>");
            sb.AppendFormat("                <p>{0}</p>", guidanceText);
            sb.Append("            </td>");
            sb.Append("            <td class=\"right\" width=\"3\"><div></div>");
            sb.Append("            </td>");
            sb.Append("        </tr>");
            sb.Append("        <tr>");
            sb.Append("            <td class=\"bottom\" colspan=\"2\"><div></div>");
            sb.Append("            </td>");
            sb.Append("        </tr>");
            sb.Append("    </tbody>");
            sb.Append("</table>");
            sb.Append("</div>");

            return MvcHtmlString.Create(sb.ToString());
        }

        public static MvcHtmlString EnumDropDownListFor<TModel, TProperty>(this HtmlHelper<TModel> htmlHelper, Expression<Func<TModel, TProperty>> expression, IDictionary<string, object> htmlAttributes = null) where TModel : class
        {
            var memberExpression = expression.Body as MemberExpression;
            if (memberExpression == null)
                throw new InvalidOperationException("Expression must be a member expression");

            var name = ExpressionHelper.GetExpressionText(expression);
            var fullName = htmlHelper.ViewContext.ViewData.TemplateInfo.GetFullHtmlFieldName(name);
            ModelState currentValueInModelState;
            var couldGetValueFromModelState = htmlHelper.ViewData.ModelState.TryGetValue(fullName, out currentValueInModelState);
            object selectedValue = null;
            if (!couldGetValueFromModelState &&
                htmlHelper.ViewData.Model != null)
            {
                selectedValue = expression.Compile()(htmlHelper.ViewData.Model);
            }

            var placeholderName = PlaceholderName(memberExpression);

            htmlAttributes = ApplyHtmlAttributes(htmlAttributes, placeholderName);

            var selectItems = GetSelectItemsForEnum(typeof(TProperty), selectedValue).ToList();
            AddPlaceHolderToSelectItems(placeholderName, selectItems);

            return htmlHelper.DropDownListFor(expression, selectItems, htmlAttributes);
        }

        public static MvcHtmlString PlaceholderDropDownListFor<TModel, TProperty>(this HtmlHelper<TModel> htmlHelper, Expression<Func<TModel, TProperty>> expression, IEnumerable<SelectListItem> selectList, string optionLabel, IDictionary<string, object> htmlAttributes = null)
            where TModel : class
        {
            var memberExpression = expression.Body as MemberExpression;
            if (memberExpression == null)
            throw new InvalidOperationException("Expression must be a member expression");

            IList<SelectListItem> list = selectList.ToList();
            var placeholderName = PlaceholderName(memberExpression);
            AddPlaceHolderToSelectItems(placeholderName, list);

            htmlAttributes = ApplyHtmlAttributes(htmlAttributes, placeholderName);

            return htmlHelper.DropDownListFor(expression, list, string.IsNullOrEmpty(optionLabel) ? null : optionLabel, htmlAttributes);
        }

        public static IList<SelectListItem> GetSelectItemsForEnum(Type enumType, object selectedValue)
        {
            var selectItems = new List<SelectListItem>();

            if (enumType.IsGenericType &&
                enumType.GetGenericTypeDefinition() == typeof(Nullable<>))
            {
                enumType = enumType.GetGenericArguments()[0];
                selectItems.Add(new SelectListItem { Value = string.Empty, Text = string.Empty });
            }

            var selectedValueName = selectedValue != null ? selectedValue.ToString() : null;
            var enumEntryNames = Enum.GetNames(enumType);
            var entries = enumEntryNames
                .Select(n => new
                {
                    Name = n,
                    DisplayAttribute = enumType
                        .GetField(n)
                        .GetCustomAttributes(typeof(DisplayAttribute), false)
                        .OfType<DisplayAttribute>()
                        .SingleOrDefault() ?? new DisplayAttribute()
                })
                .Select(e => new
                {
                    Value = e.Name,
                    DisplayName = e.DisplayAttribute.Name ?? e.Name,
                    Order = e.DisplayAttribute.GetOrder() ?? 50
                })
                .OrderBy(e => e.Order)
                .ThenBy(e => e.DisplayName)
                .Select(e => new SelectListItem
                {
                    Value = e.Value,
                    Text = e.DisplayName,
                    Selected = e.Value == selectedValueName
                });

            selectItems.AddRange(entries);

            return selectItems;
        }

        public static IEnumerable<string> GetNamesForEnum(Type enumType, object selectedValue)
        {
            if (enumType.IsGenericType &&
               enumType.GetGenericTypeDefinition() == typeof(Nullable<>))
            {
                enumType = enumType.GetGenericArguments()[0];
            }

            var enumEntryNames = Enum.GetNames(enumType);
            var entries = enumEntryNames
                .Select(n => new
                {
                    Name = n,
                    DisplayAttribute = enumType
                        .GetField(n)
                        .GetCustomAttributes(typeof(DisplayAttribute), false)
                        .OfType<DisplayAttribute>()
                        .SingleOrDefault() ?? new DisplayAttribute()
                })
                .Select(e => new
                {
                    Value = e.Name,
                    DisplayName = e.DisplayAttribute.Name ?? e.Name,
                    Order = e.DisplayAttribute.GetOrder() ?? 50
                })
                .OrderBy(e => e.Order)
                .ThenBy(e => e.DisplayName)
                .Select(e => e.Value);
            return entries;
        }

        static string PlaceholderName(MemberExpression memberExpression)
        {
            var placeholderName = memberExpression.Member
                .GetCustomAttributes(typeof(DisplayAttribute), true)
                .Cast<DisplayAttribute>()
                .Select(a => a.Prompt)
                .FirstOrDefault();
            return placeholderName;
        }

        static void AddPlaceHolderToSelectItems(string placeholderName, IList<SelectListItem> selectList)
        {
            if (!selectList.Where(i => i.Text == string.Empty).Any())
                selectList.Insert(0, new SelectListItem { Selected = false, Text = placeholderName, Value = string.Empty });

            if (!selectList.Any() || selectList[0].Text != string.Empty) return;

            selectList[0].Value = "";
            selectList[0].Text = placeholderName;
       }

        static IDictionary<string, object> ApplyHtmlAttributes(IDictionary<string, object> htmlAttributes, string placeholderName)
        {
            if (!string.IsNullOrEmpty(placeholderName))
            {
                if (htmlAttributes == null)
                {
                    htmlAttributes = new Dictionary<string, object>();
                }

                if(!htmlAttributes.ContainsKey("class"))
                    htmlAttributes.Add("class", "placeholder");
                else
                {
                    htmlAttributes["class"] += " placeholder";
                }
            }
            return htmlAttributes;
        }
    }
}

Heroku Neo4j, App Harbor MVC4, Neo4jClient & Ruby Proxy

Overview

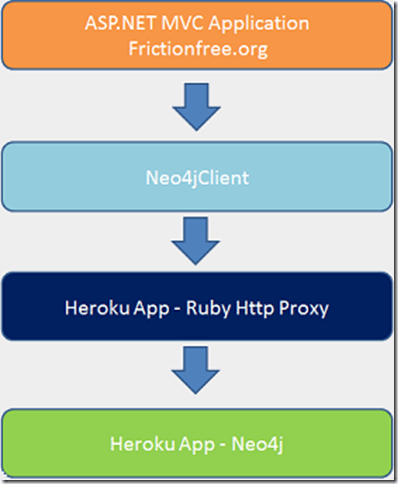

We going to outlay the process to deploy a 4 layers architecture using the above technologies.

architecture

Prerequisites

Sinatra and Rest-Client

Sinatra and the Rest-Client libraries are used in the Ruby Gem to proxy all Http requests to Neo4j.

Install Process

Install the Heroku client, run this from the heroku\Ruby\bin folder e.g. D:\Program Files (x86)\Heroku\ruby\bin

gem install heroku

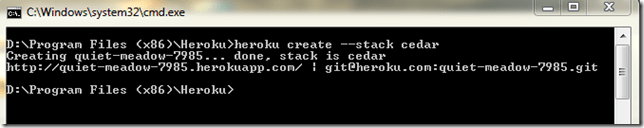

We then need to use the Cedar stack (http://devcenter.heroku.com/articles/cedar) which supports ruby in Heroku,  so run:

heroku create –stack cedar

(Ensure git.exe is in your environment variables)

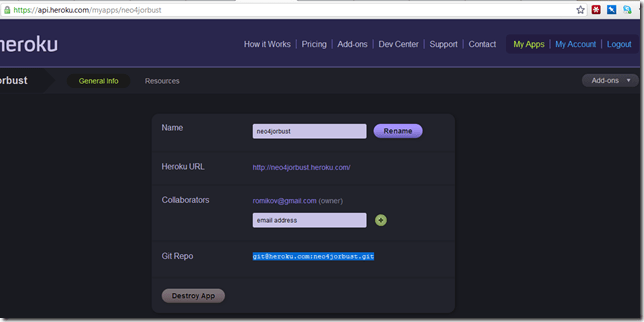

Once this is completed we then deploy our code to our Heroku git repository. You can see your git heroku repository in the app details for the app you created in Heroku:


We will use a public key that we created when first setting up Heroku, check blog post

https://romikoderbynew.com/2012/01/25/getting-started-with-heroku-toolbelt-on-windows-2/

if you changed your public key, then add it to Heroku

heroku keys:add

Ok, now we push the Gem files to our Heroku git repository. Your repsotory will be different to mine!

git push git@heroku.com:neo4jorbust.git master


Lets check the state of the application

E:\Projects\RubyRestProxy>heroku ps –app neo4jorbust
Process State Command
——- ———– ————————————
web.1 idle for 9h thin -p $PORT -e $RACK_ENV -R $HER..

Test HttpClient –> Ruby –> Neo4j Communication

Nice, now we got this GEM file, which is our Ruby http proxy code for gremlin queries. Lets test this baby out with fiddler and run  gremlin query to the web app, which will then call neo4j!

Lets browse the Ruby Application on the Heroku server, so we can find out what URL we need to use to send Gremlin queries to Neo4j.


Beautiful, all we need to do now is send an HTTP POST to the added, you can use curl, but here is fiddler.


And the result, music to our eyes


ASP.NET MVC 4 APP with Neo4jClient

This application is hosted at

http://frictionfree.org

Source Code:

https://bitbucket.org/romiko/frictionfree/src

Now we going to fire up a .Net application that will use the Neo4jClient Rest Api to communicate with neo4j in Heroku. You can find out more about Neo4jClient here http://hg.readify.net/neo4jclient/wiki/Home

Clone the git repository to get the source code for our sample Neo4jClient .Net application. This is a MVC4 application and runs on the .Net Framework 4 runtime, so please ensure you have this installed on your windows machine.

About frictionfree.org

The application is used to find other people with similar interests to you and the opportunity to get their details and contact them to perhaps share your love of flying, surfing or whatever it is you like to do!

Bitbucket and AppHarbor integration

If you have your own ASP.NET application, you can store it in bitbucket and then configure bitbucket to auto deploy to AppHarbor when pushing back the repostory.

In the admin settings for your repository just add your appharbor token.


Neo4jClient gremlin Query syntax

Check the source code of the MVC application in the Logic library to see how to run queries to Neo4j. Here is sample code to get administrators of the system

private void CreateAdminAccountIfNoneExist() { var anyAdmins = graphClient .RootNode .In(Administers.TypeKey) .Any(); if (!anyAdmins) { provisionNewUserService.CreateAdmin(); } }
